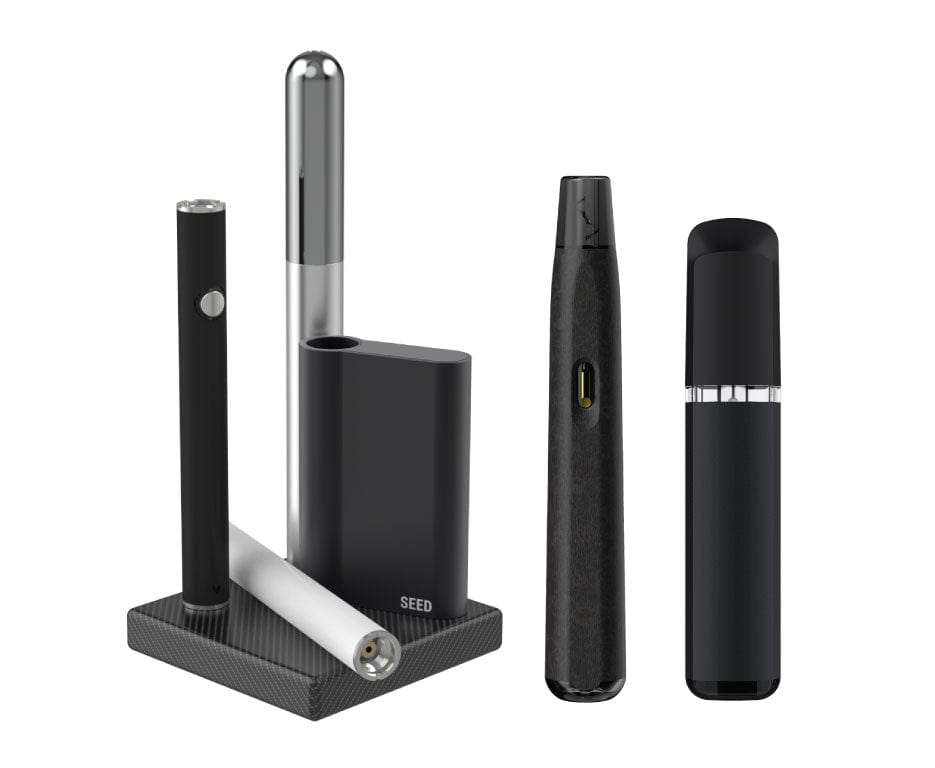

AVD Battery Tips and Tricks

Tips and Tricks

How to get the most from your AVD batteries

avd-batteries-page-pic-main.jpg__PID:5cbf2c53-e242-4f2b-889d-5d47504d2fe7

Control your Temperature

Vape High or Low.

At the base of the battery, you wil find a high and low-voltage toggle.  Use the high setting for bigger clouds, or switch to low to experience the flavor profile of your oil.

Whichever setting you select, your battery will automatically adjust the power going to the cartridge.  AVD calls it PowerWave, keeping the temperature just right because oil that overheats, will taste exactly that way.

Screenshot 2024-01-16 at 11.13.12 AM.png__PID:0e72e489-c12f-4bf5-88a3-cb5b13badc9c
Temperature-Control-Monitor-mockup.jpg__PID:51b40a0d-2653-4b9e-bbdd-b86ce42cb0a0

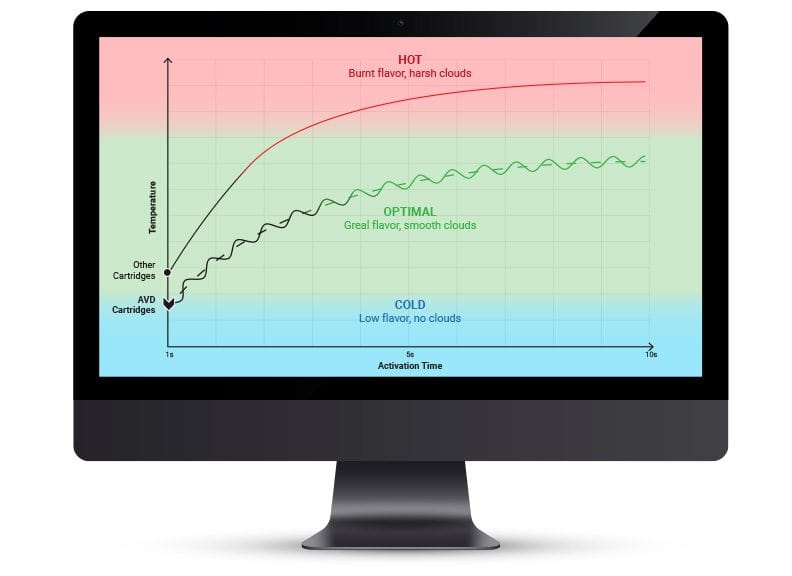

About PowerWave

Why does voltage matter?

Traditional 3.5 volt batteries maintain a constant voltage. Constant voltage means the longer your sesh, the hotter your oil gets which causes poor flavor.

AVD batteries, on the other hand, regulate the temperature. So a 3.5 volt AVD battery runs cooler over time compared to others. Good for flavor. Good for you.

Carburetor

Control airflow, manually

The Stik Battery has small air notches at the top. Place your finger over one of the airholes to manually adjust the airflow for a richer hit.

For the Seed battery, you will see a small hole on the side. You can regulate the airflow to the cartridge, by placing a finger over the hole.

stiktop.png__PID:45eda052-1ed0-448a-8d52-dcdd5d91fe24

Troubleshooting: Tips and Tricks

Everything from clearing clogs, cleaning your battery and cartridges. We got you covered.

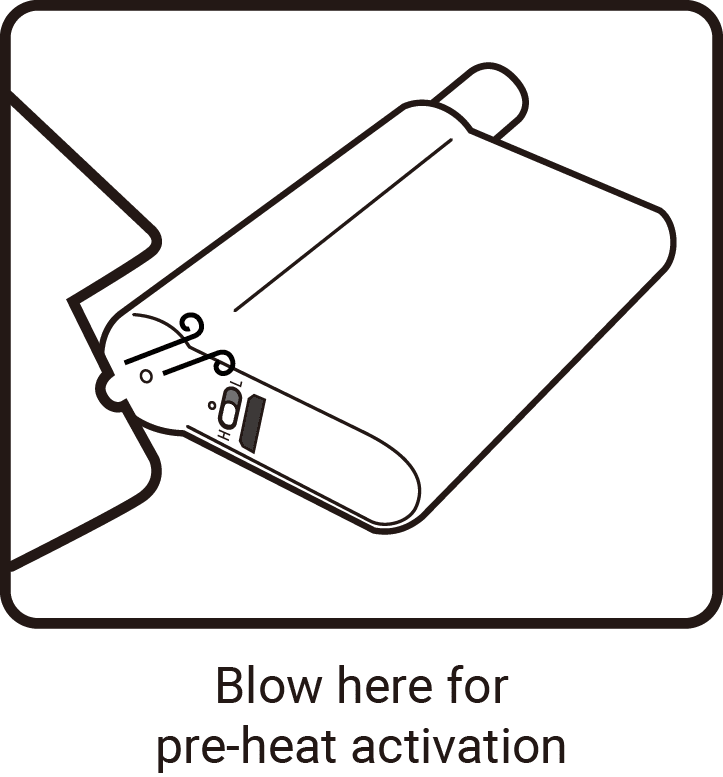

Pre-Heating

Battery-infographics-for-web2.png__PID:25562210-3d6b-4aff-af5a-2f2454de8c47
Battery-infographics-for-web1.png__PID:fe36acfe-40ef-4a20-b54e-cf0566fb79ec

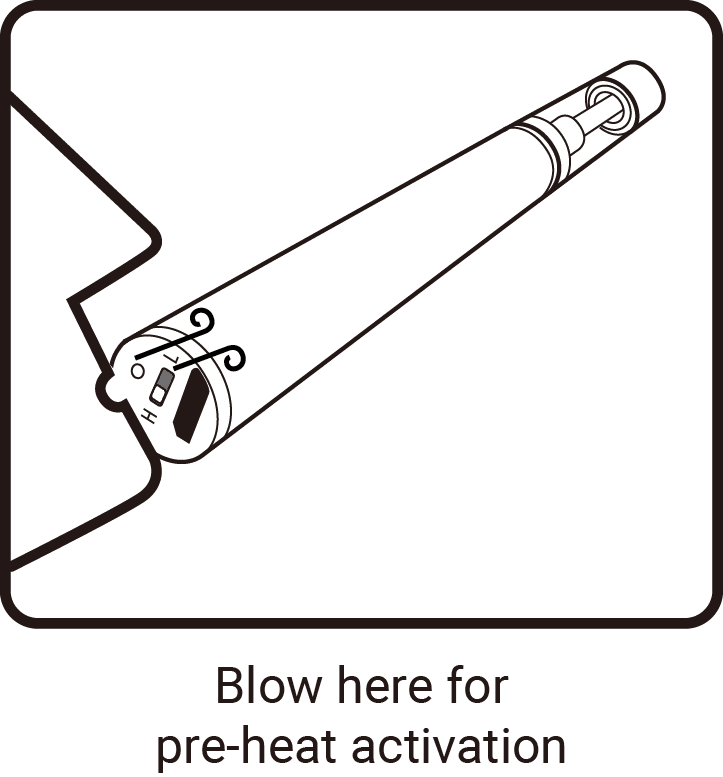

On the bottom of your Battery you’ll see a small airhole. This is the pre-heat function for heating thicker oils before starting your session. Blow once or twice into the hole and vape as usual!

This technique doubles up to help clear the airway should you experience any clogging.

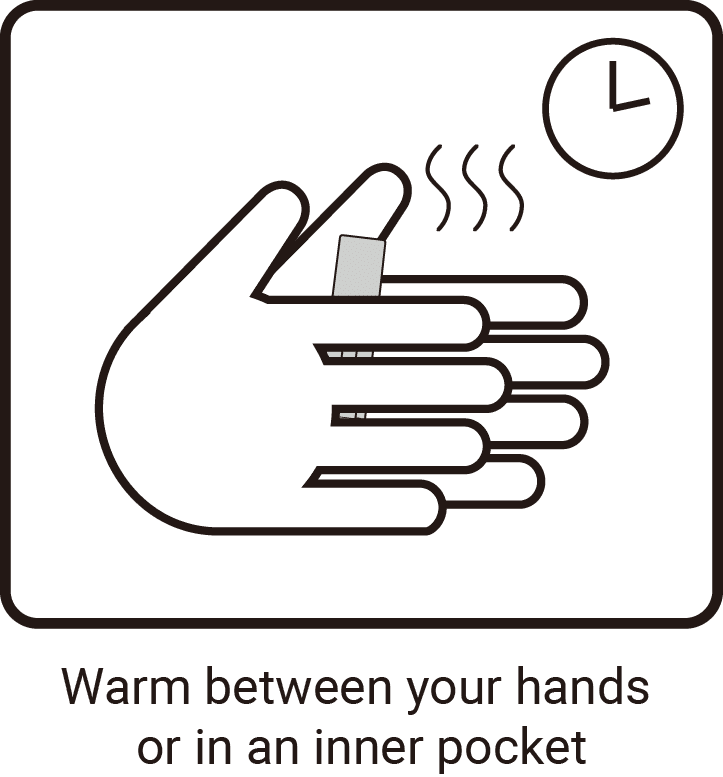

Additional heating technique

Battery-infographics-for-web4.png__PID:d4dc4250-4c2b-4ed0-9196-e10cee3952e6

Additionally, you can warm your cartridge in your hand or place it near a heat source, BUT only for a few seconds!  Once you see the oil thin out, remove the heat source.  Overheating a cartridge can make things much worse.  Be careful with the amount of heat used.

Still clogged, or battery not working, See below...

Cleaning your battery and cartridge

Asset-5.png__PID:c22b99c5-42ca-45a4-afae-a10170022c41
Asset-4.png__PID:c7c22b99-c542-4a15-a46f-aea10170022c

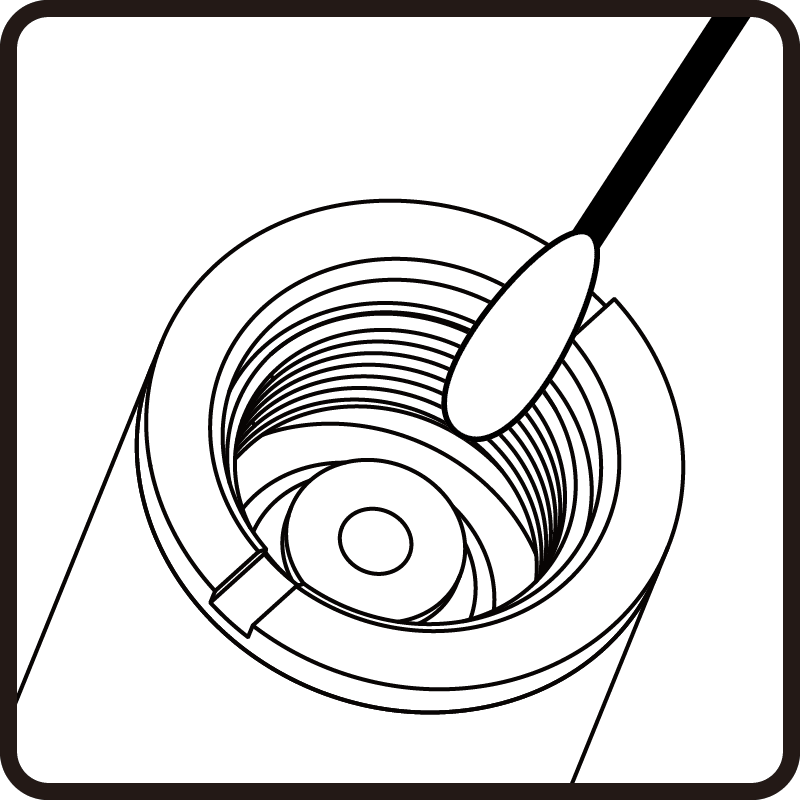

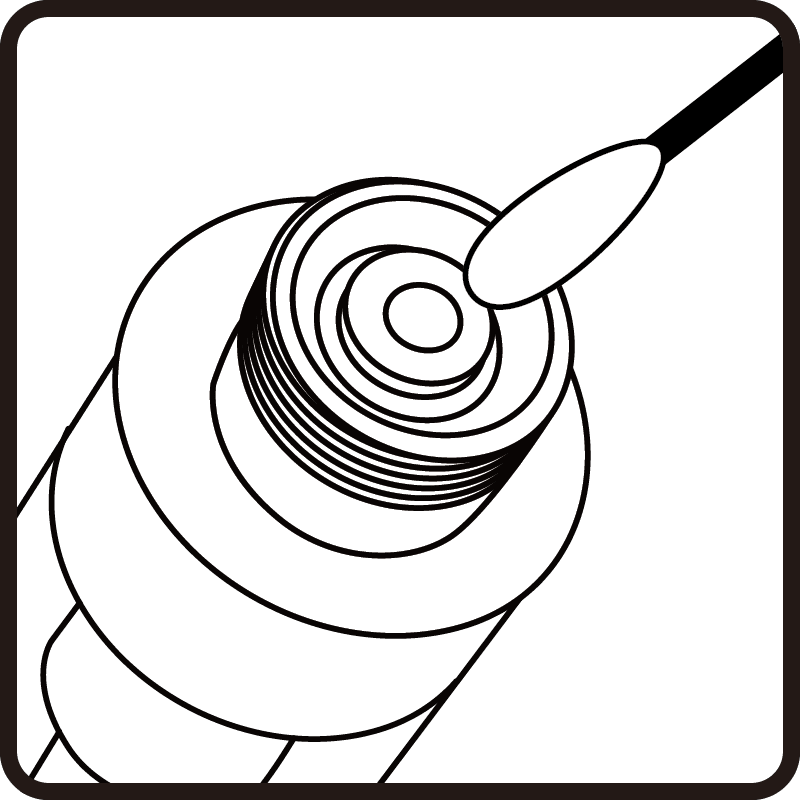

Use a lightly dampened 70%-90% isopropyl or ethyl alcohol swab, clean around the cartridge and battery threads and contact point.

Click here to download full cleaning details.

Caring for your cartridge

Best Practice

Battery-infographics-for-web7.png__PID:72fa5936-cc09-43ab-8055-02a886ae0427

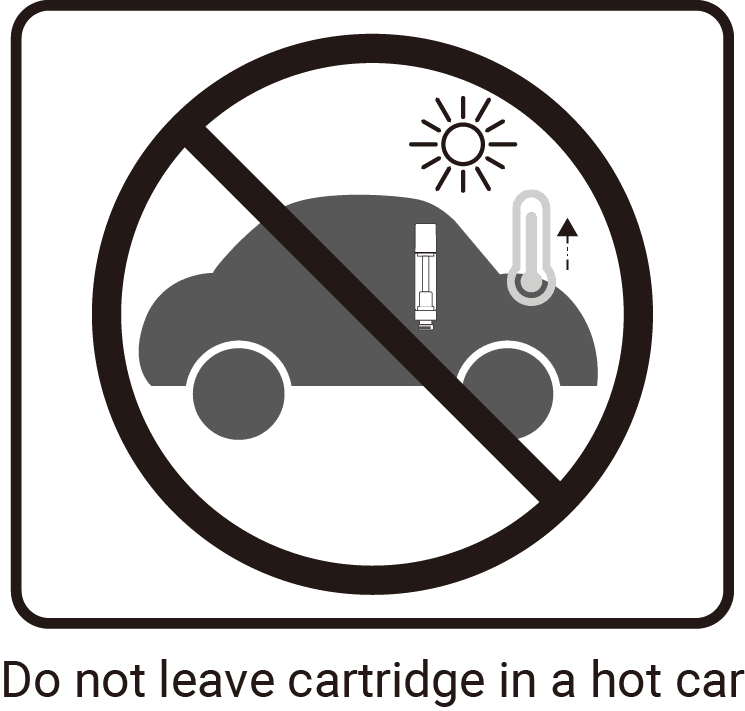

  • Do not leave cartridges in your car or in direct sunlight.  Direct sunlight is bad for the oil and the cart, as temperature changes could cause clogs or leaks.
  • Store your cartridges upright to avoid leaks.
  • Keep cartridges at room temperature to avoid clogs and leaks.
  • Avoid dropping your cartridge or batttery.
  • Never over tighten your cartridge when scrwwing onto a battery.
  • Use a protective case or cover to prevent damage or debris from entering the mouthpiece.
  • Use batteries made for cannabis ccartridges.  510 or magnetic adapter style is best.
  • Be careful with E-Cig style box mods, as they could burn out your coil.

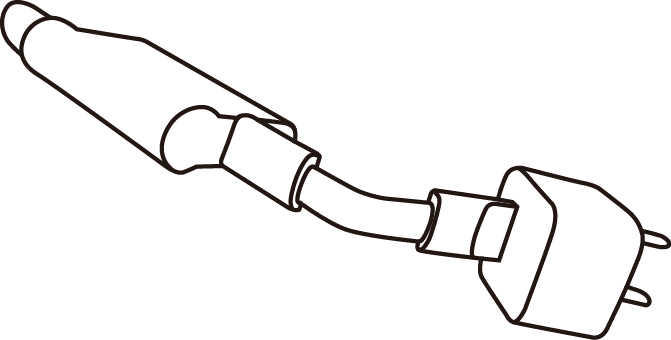

How to charge a new battery

Saving our planet

To reduce waste, AVD is phasing out the charge cables they used to include with the batteries. Most of us have spare micro-USB cables we use for our other electronic devices. To charge your AVD battery, connect the USB charge port located under the battery to a power source, and start charging.

Warning: Do not use power chargers that output more than 5 volts. This may damage the battery.

charging-a-Seed.png__PID:97200493-0857-4a43-bdad-5073b90f9013

What do all the lights and vibrations mean?

Whether the light is green, red or you feel pulsing, they all mean something different depending on your battery.  Let us break it down for you.

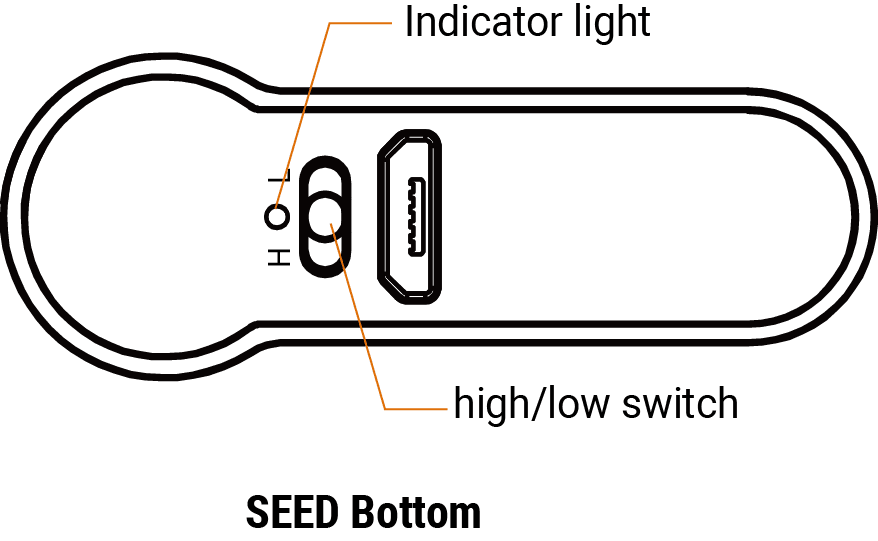

AVD Seed Battery haptic vibration and LED indicators

NOTE: A flashing red light when charging, simply means that the battery is correctly charging.

  • Active use indication: Vibration
  • Charging: Blinking red light
  • Fully Charged: Solid green light
  • 10 second draw indicator: Vibration stops
  • Short Circuit: 3 long vibrations
  • Connection Error: 2 quick vibrations
  • Over use Protection: Device deactivates after a 10 second draw activation.  Device resets after draw is finished
  • Low battery: 5 short vibrations
main-images-for-the-Seed.png__PID:61b2c9e9-7925-4c16-a69c-41515065d393

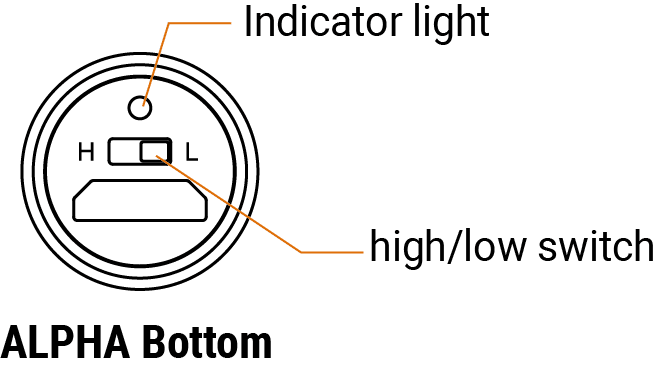

AVD Alpha Battery haptic vibration and LED indicators

NOTE: A flashing red light when charging, simply means that the battery is correctly charging.

  • Active use indication: Vibration
  • Charging: Blinking red light
  • Fully Charged: Solid green light
  • 10 second draw indicator: Vibration stops
  • Short Circuit: 3 long vibrations
  • Connection Error: 2 quick vibrations
  • Low battery: 5 short vibrations
main-images_Alpha.png__PID:3a072987-3e59-4bc9-86a1-2463e68b446c

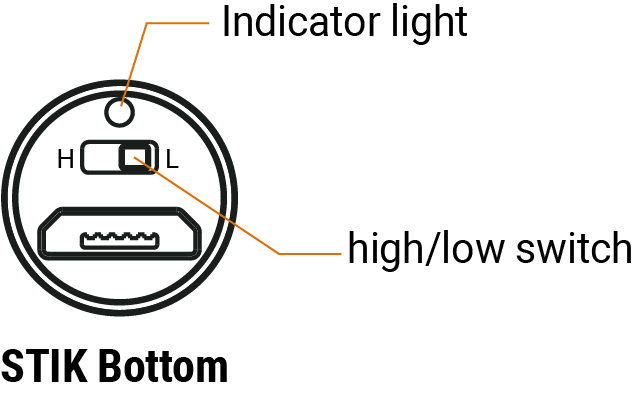

AVD STIK Battery LED indicators

NOTE: If you see a flashing green light when charging, and solid when full, don’t worry. It means your battery is charging correctly.

  • Active use indication: Solid green light
  • Charging: Blinking red light
  • Fully Charged: Solid green light
  • Short Circuit: Red light flashes x10
  • Connection Error: Solid red light for 5 seconds
main-images_Stik.png__PID:a2e74ea5-54ee-4c96-8e42-a1138148b1b5

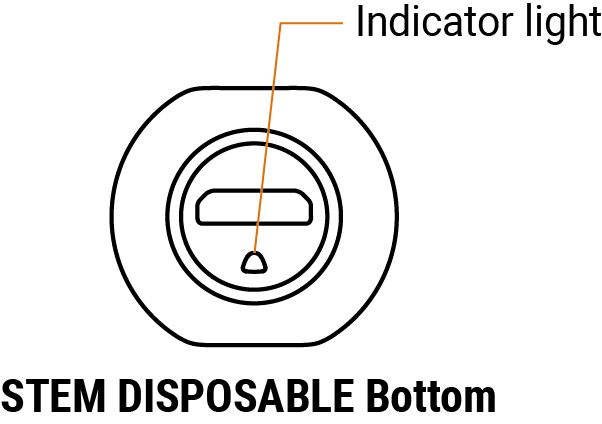

AVD Stem All-In-One  LED indicators

  • Active use indication: Constant light
  • Charging: Constant light
  • Fully Charged: Light flashes x20
  • 10 second draw indicator: Light flashes x2
  • Short Circuit: 2 second solid light
  • Connection Error: Light flashes x10
  • Low battery: Light flashes x10
  • Unplug: Light flashes x3
main-images_Stem-1.png__PID:c066d43a-20b5-418d-bb05-bd2122529b0e

GoodCarts by AVD Button Battery LED indicators

  • Active use indication: Solid green light
  • Low battery: Charging: Solid red light
  • Fully Charged: Solid green light
  • Over use protection: Device deactivates after 10 seconds, red light flashes x5
  • Short Circuit: White light flashes x3
main-images_Stem-1.png__PID:c066d43a-20b5-418d-bb05-bd2122529b0e

Pro Tips

Battery-infographics-for-web3.png__PID:966eb8f1-e0b1-41e3-820f-9748e3d4aaab

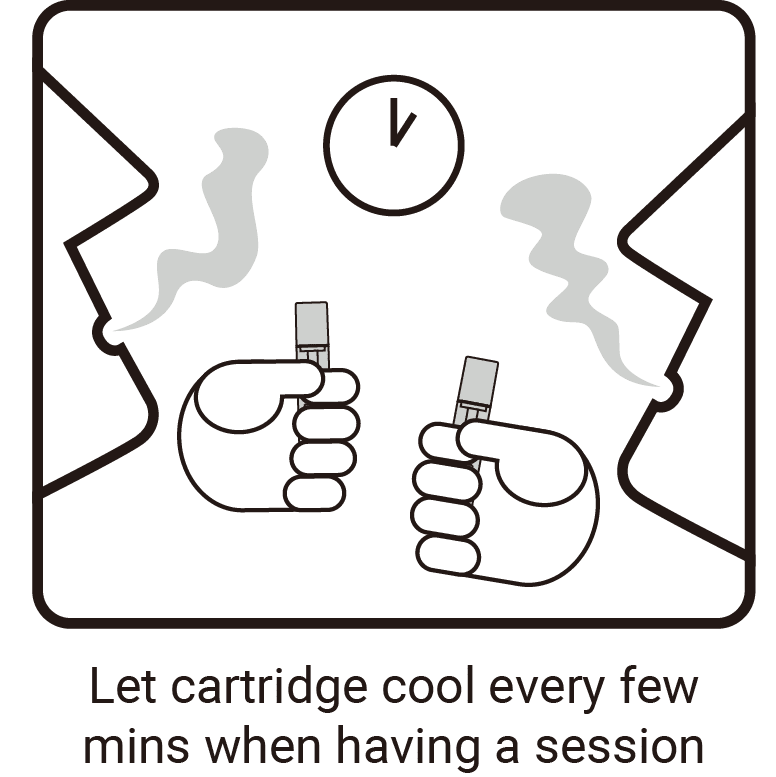

Session Duration

Clearing your entire cartridge in one session may not be the best idea.  This may impact the flavor in a negative way. Let your cartridge cool after a few minutes of use before resuming.

Battery-infographics-for-web6-1.png__PID:b8f1e0b1-81e3-420f-9748-e3d4aaab8078

Storage

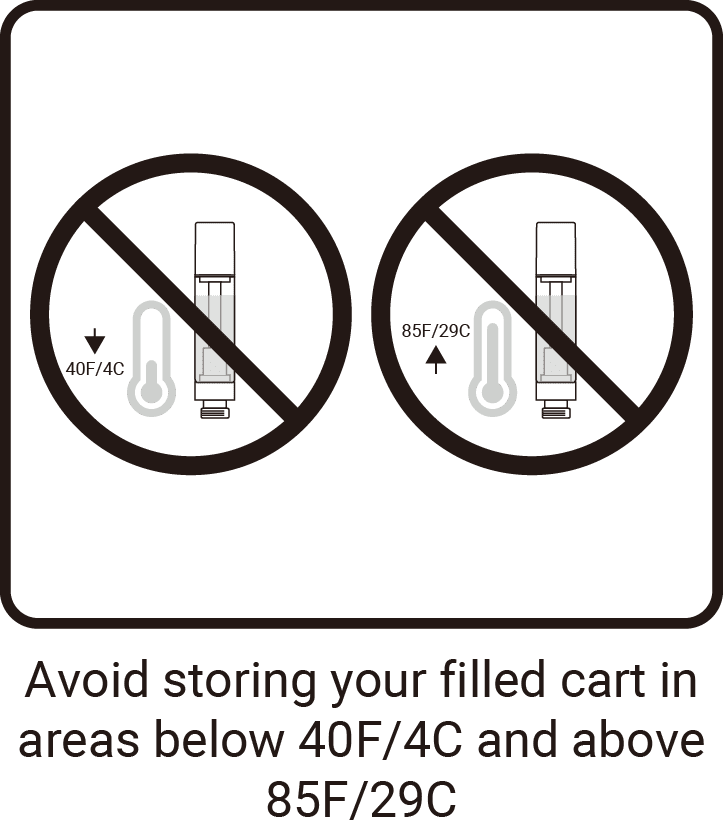

Try storing your filled cartridges at a moderate temperature.  Avoid areas below 40F and above 85F for best performance. Extreme cold can cause clogging and spitting.  Extreme heat can result in leaks.

Battery-infographics-for-web8.png__PID:6eb8f1e0-b181-43c2-8f97-48e3d4aaab80

Elevation

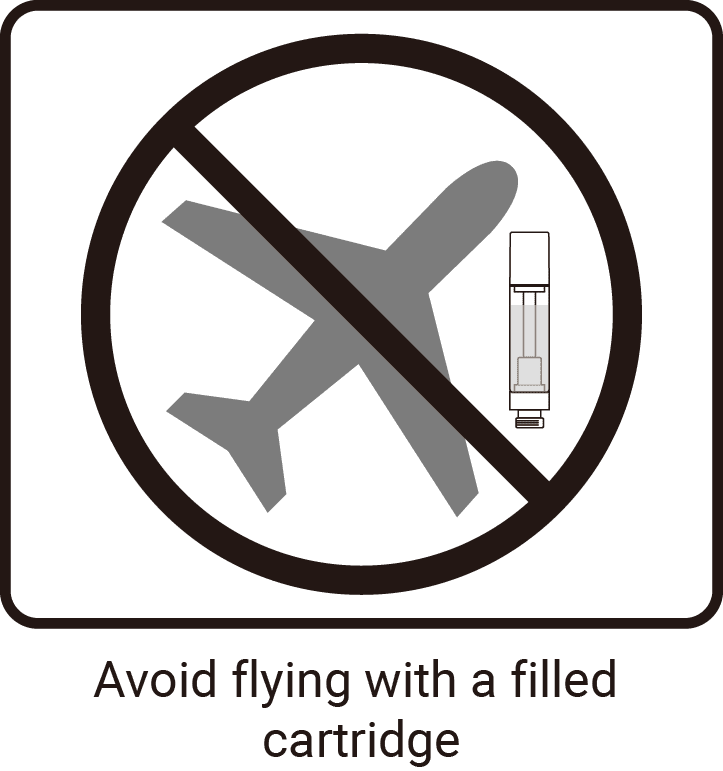

Big changes in elevation can disrupt the pressure seal balance of a filled cartridge, causing a leak.  When possible, avoid flying with filled cartridges or keep your cartridge upside down to keep the oil from getting pushed through the atomizer.
